 PRICE LIST FOR STRUCTURE PLANS

STATIONS:
 STATION PHOTOS
Kaslo & Slocan Station

12.75" x 32" x 16" high

This depot was built in the gay 90's in Kaslo, BC. for the K&S branch of the Great Northern RR. It makes a large and impressive model for your main station area.

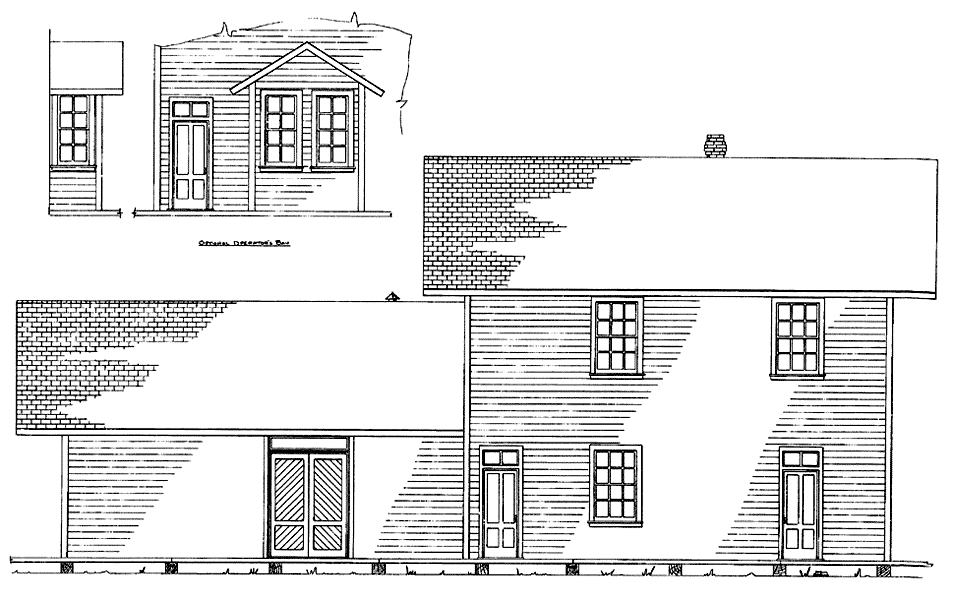

K & S Station Drawing



Two Sheets

$17.50 US Funds



New Jersey Country Station

17" x 25" over platform

A basic station for a small railroad or branch line.

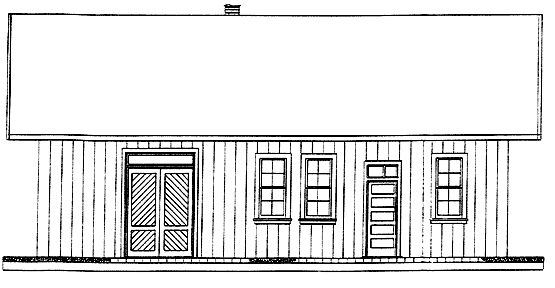

NJ Station Drawing





Two Sheets

$17.50 US Funds


South Pacific Coast Station


14.5" x 28.5" over platform,
can be shortened 3 to 4"
.

A handsome 1900's station for freight and passenger service.

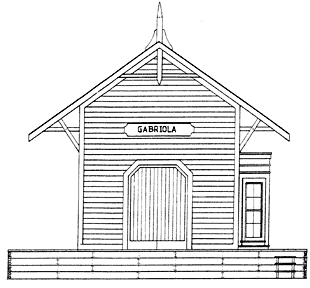

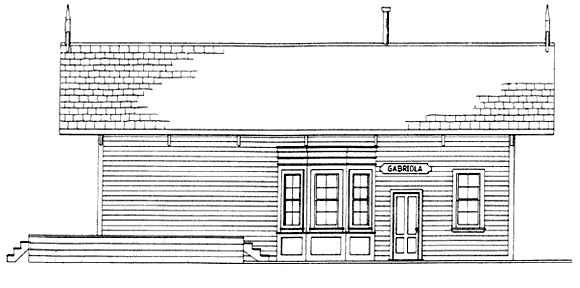

SP Station Front DrawingSP Station End Drawing





Two Sheets

$17.50 US Funds

Denver & Rio Grand Station at Cumbres

12.75" x 20" (17" x 23" over eaves)

Small multi-purpose station & crew house typical of the small stations & crew shelters on the old narrow gauge railroads.

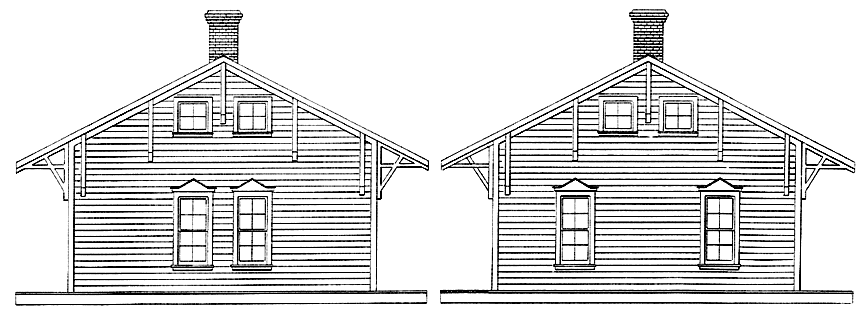

D&RG Station Ends Drawing

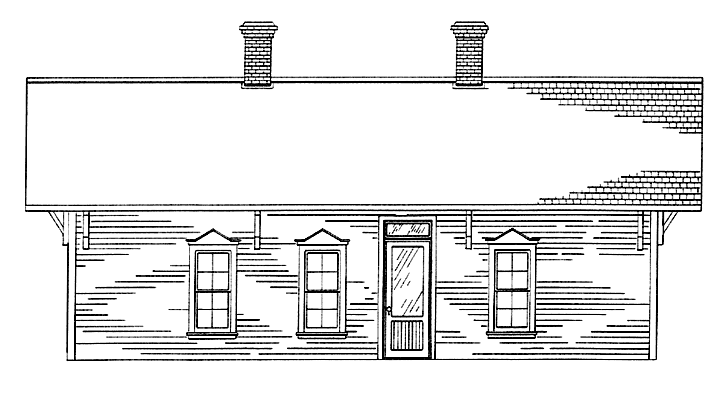

D&RG Station Trackside Drawing





Two Sheets

$17.50 US Funds

Three Flagstop Stations

Largest about 10.75" x 10" including platform.

Based on Maine 2 foot gauge & Pennsylvania RR branch line prototypes. Has a bonus coal box on the plans.

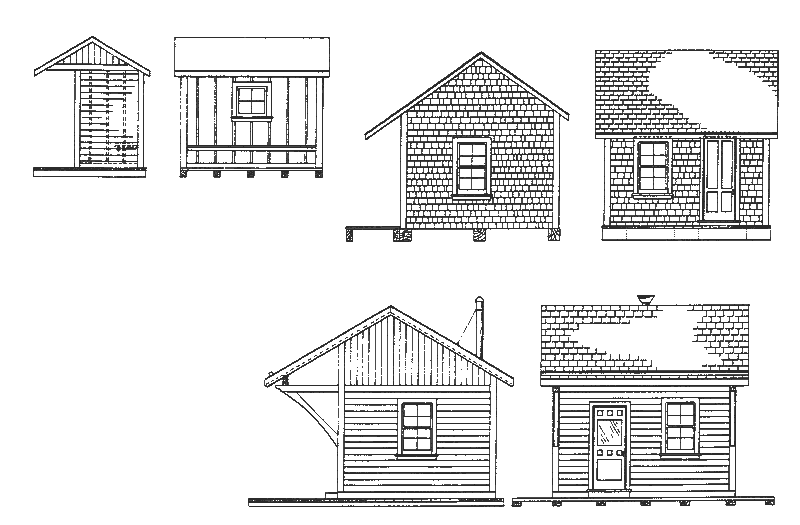

Flagstops Drawing



One Sheet

$10.50 US Funds

STATION PHOTOS
WATER TANKS:
WATER TANK PHOTOS
Denver & Rio Grand Water Tank

15" diameter x 24" tall

D&RG 50,000 gal water tank, based on D&RG drawings from 1900, with details from various photos over the years. Includes information on variations for tanks at Chama, Hermosa, Durango, Osier, etc.

This is a project for the experienced modeller.

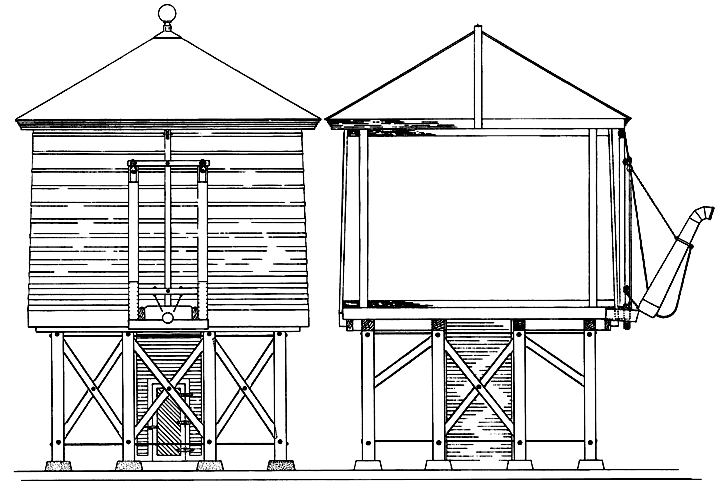

Drawing D& RG Water Tank





Three Sheets

$19.95 US Funds


Northern Pacific  Water Tank at Kanaskat, Washington

10" x 6.5" x 15" tall

Open top, rectangular tank for your logging or branch line. The rectangular tank is easier to build than a round tank.

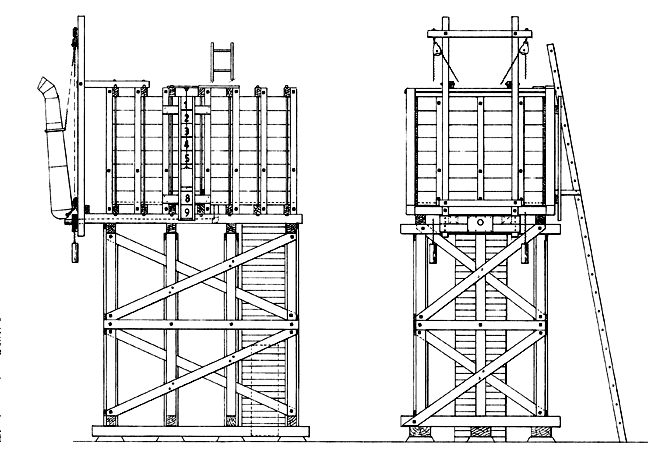

NP water Tank Drawing

One Sheet

$10.50 US Funds

Alberni Pacific Railway Water Tank

8.5" dia. x 18" tall

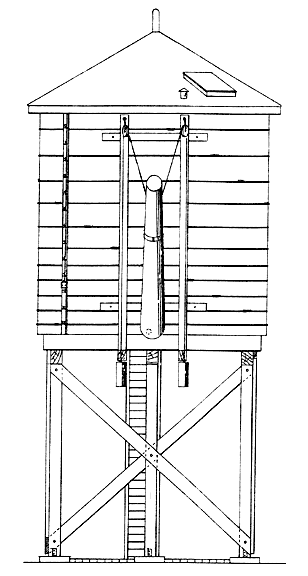

A handsome old time water tank that still stands by the station in Port Alberni, BC.











Two Sheets

$17.50 US Funds

East Broad Top  Enclosed Water Tank

9" x 14" x 12" tall

An unusual enclosed tank, styled after the one at Saltillo, Pennsylvania on the narrow gauge EBT.

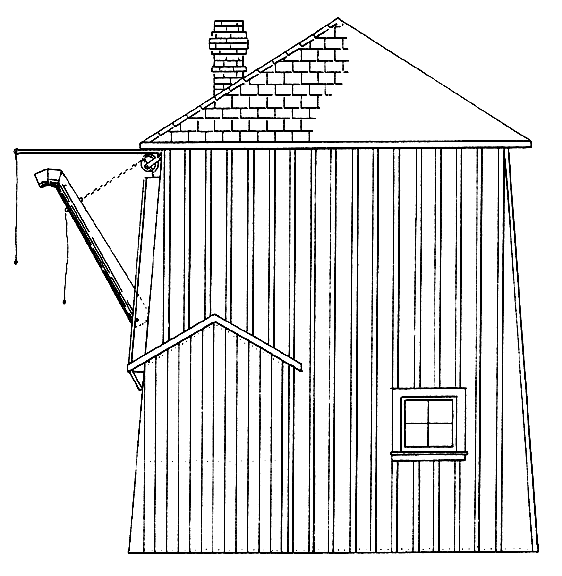

EBT Water Tank Drawing



One Sheet

$10.50 US Funds

Esquimalt & Nanaimo Water Tank

9.5" dia. x 21" tall

Very impressive tank for your steam engines, original still stands in Parksville, British Columbia.

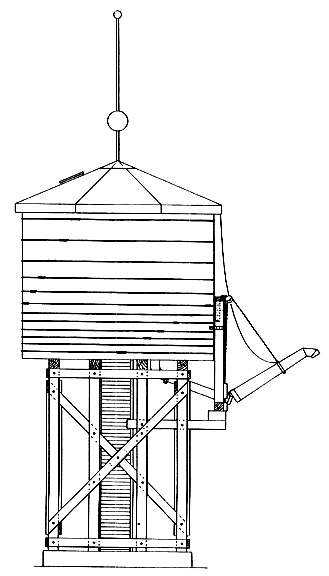

E&N Water Tank Drawing



Two Sheets

$17.50 US Funds

CPR Enclosed Water Tank

12" dia. x
 20" tall

An enclosed water tank
based on those used by the CPR in wintery climates.  The CNR used similar tanks.

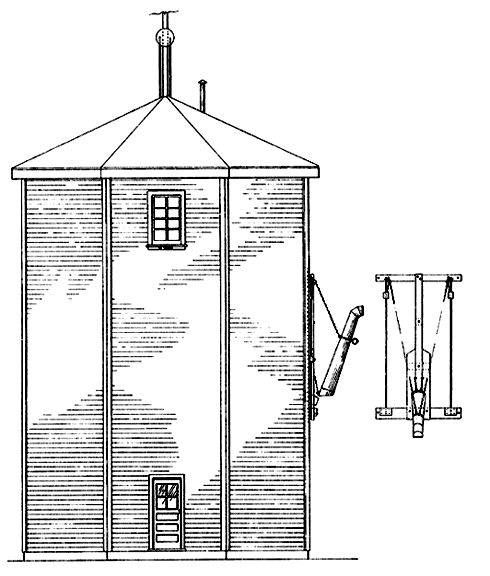

CPR Water Tank Drawing

One Sheet

$10.50 US Funds


WATER TANK PHOTOS
Other Railroad Structures:
NN-RWY, Ely, Nevada Yardmaster's Office

20" x 24.5"

This building still exists and may have originally been a station. It now appears to be used for storage, but was probably a yardmaster's office in the railroad's hay day.

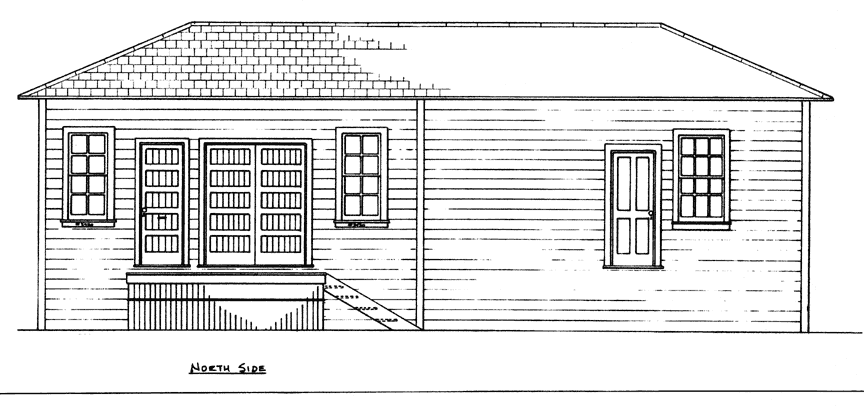

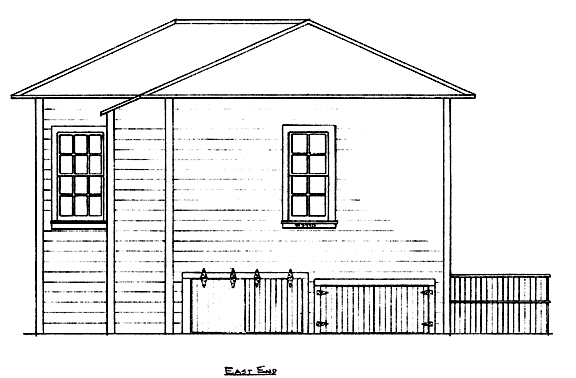

North side of yardmasters officeEast side Yardmaster's office





Two Sheets

$17.50 US Funds

WX Interlocking Tower

8.5" x 9" x 13" high

An interlocking tower that lasted for over 90 years on the New York Central.  Plans are in 1:24 scale to use commercially available windows.


 WX INTERLOCKING TOWER PHOTO

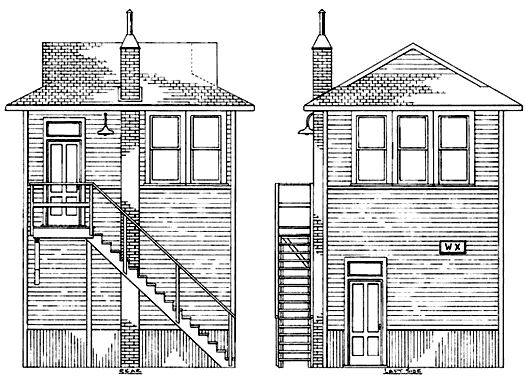

NYCRR WX Tower Drawing



One Sheet

$10.50 US Funds



SP Gateman's Tower

5" x 5" x 8" tall

Southern Pacific Gateman's Tower plus bonus crossing gate, roadside billboard, & telephone hut/outhouse.


   GATEMAN'S TOWER PHOTO

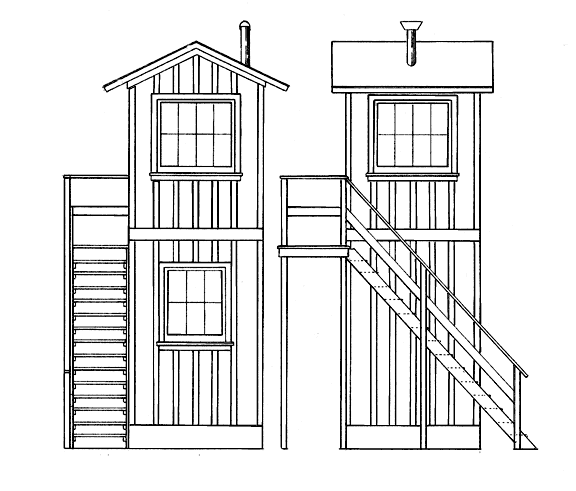

Gateman's Tower Drawing



One Sheet

$10.50 US Funds

Denver & Rio Grand Coaling Tower

19" x  21" x  32" tall

A large, imposing, & complex project, based on actual plans & photos of the tipple in Chama.

This plan is not recommended for inexperienced modellers!



 D&RG Coaling Tower Drawing

D&RG Coaling Tower Drawing

Four sheets

$26.95 US Funds



 COALING TOWER & SANDHOUSE PHOTOS



Denver & Rio Grand Sandhouse at Chama

12.5" x 17"

Representing the interesting structure in Chama, New Mexico.




Two Sheets

$17.50 US Funds

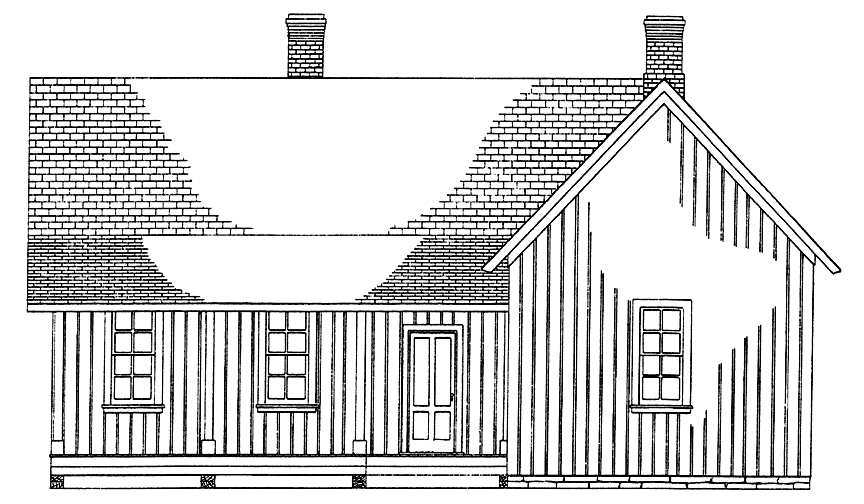

Denver & Rio Grand Section House, ca. 1887

21" x 19.5"

Would also make an attractive ranch or farm house.


Two Sheets

$17.50 US Funds






Denver & Rio Grand Handcar & Tool House

11" x 9"

Includes the Handcar/Tool house   and a bonus tool box, as well as a Coal Crib to make your depot, section house or other structure  ready for a cold Colorado winter.

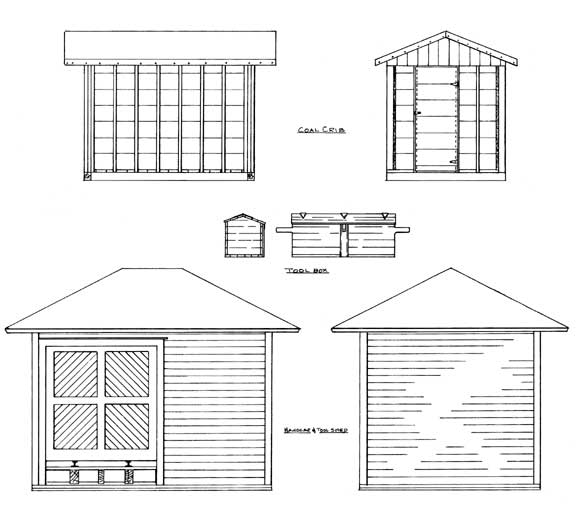

Handcar & Tool House Drawing





Two Sheets

$17.50 US Funds

Colorado & Southern Section House

12.75" x 20"

An impressive 1900 section house, could also be a farmhouse, inn, tavern or bawdy house.

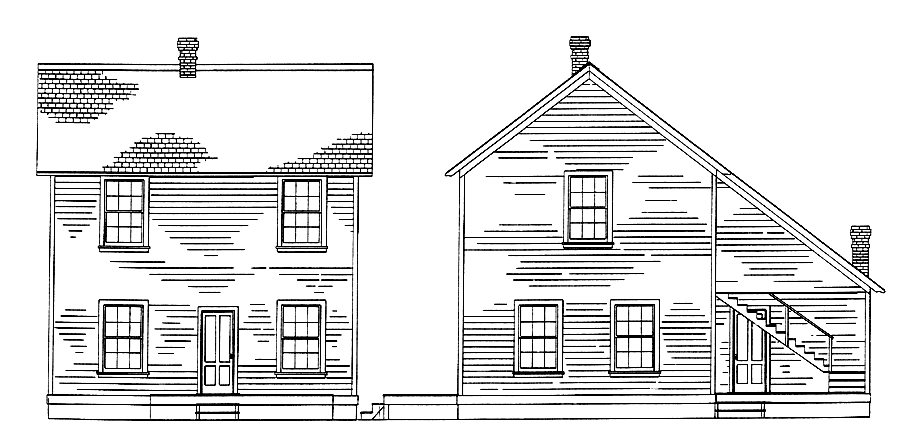

  C&S SECTION HOUSE PHOTOS

C&S Section House

Two Sheets

$17.50 US Funds



Two Denver & Rio Grand Bunkhouses

8" x 13.25" & 10.125" x 16.5"

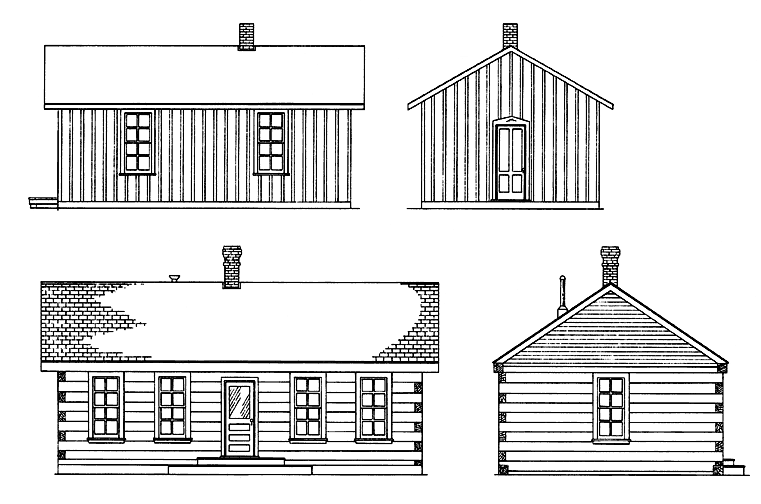

Two bunk and crew houses from the D&RG, the smaller a board & batten crew house in Sublette, Colorado and the larger a log bunk house in Chama, New Mexico
.


       LOG BUNK HOUSE PHOTOS

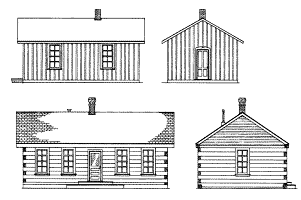

Two D&RG Bunkhouses



One Sheet

$10.50 US  Funds



Denver & Rio Grand Stockyard

size to suit

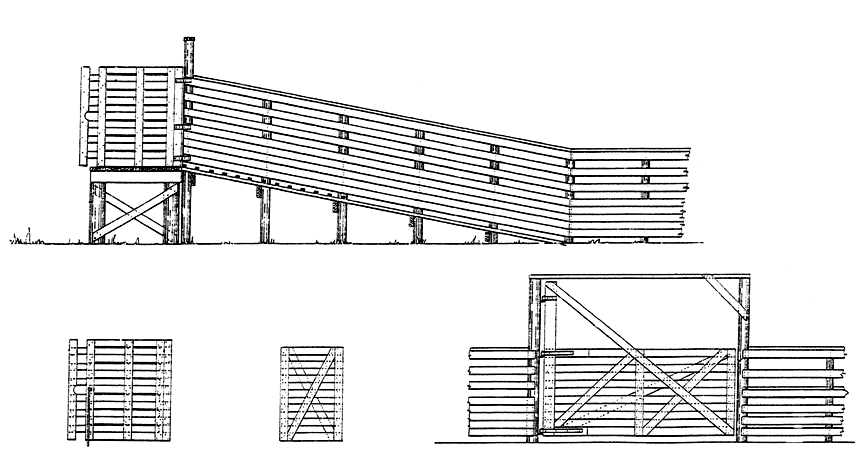

Ship your cattle from this authentic western stock yard. Includes loading chute, gates, ramp, etc.

   STOCKYARD PHOTOS






One Sheet

$10.50 US Funds

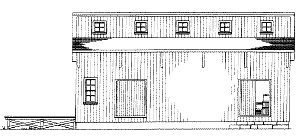

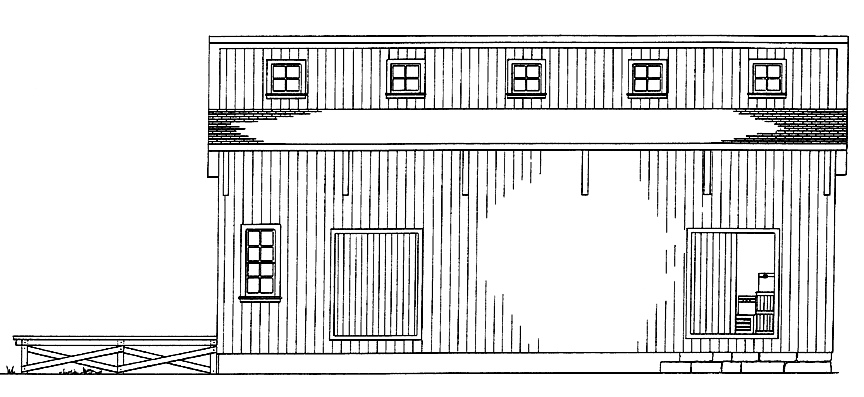

Railroad Freight House

13" x 34"

Large enough to handle all your town's LCL shipments.




Two Sheets

$17.50 US Funds





Nevada County Narrow Gauge Box Car

4.75" x 15.63"

Typical 26' narrow gauge car. Plans include both detailed fine scale freight car and simple to build yard office conversion.

 YARD OFFICE PHOTO

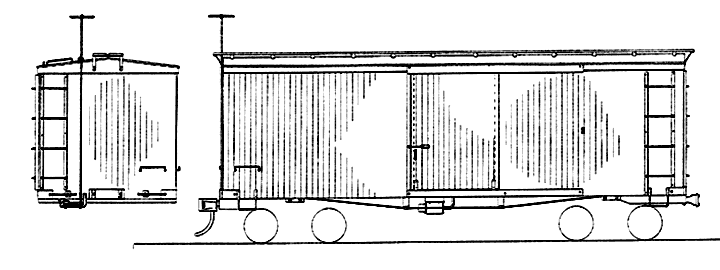

Narow Gauge Box Car





One Sheet

$10.50 US Funds

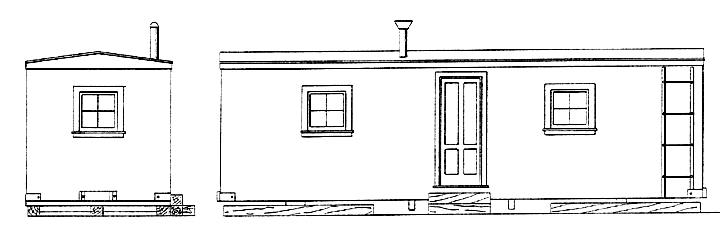

Box Car as Yard Office


Gallows Frame Turntable

32" long (can be lengthened)

Based on a Southern Pacific turntable at Medoc, California.

TURNTABLE PHOTOS

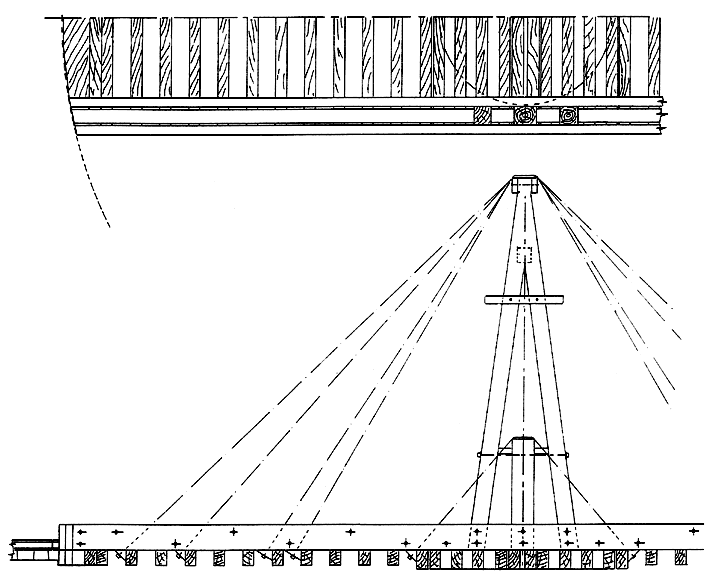

 Turntable Drawing



 One Sheet

$10.50 US Funds

Trackside Structures

Includes handcar shed/tool house, oil shed, coaling derrick, & 250 gal. oil tank.

TRACKSIDE PHOTOS

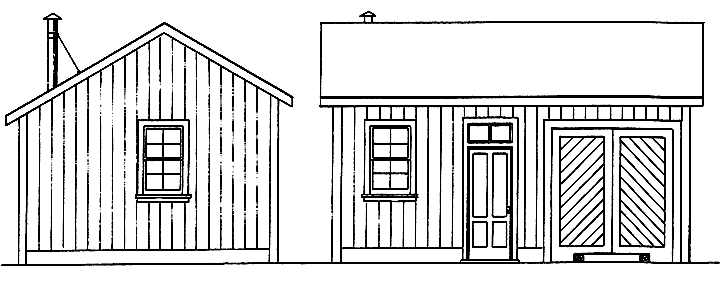

Handcar shed drawing

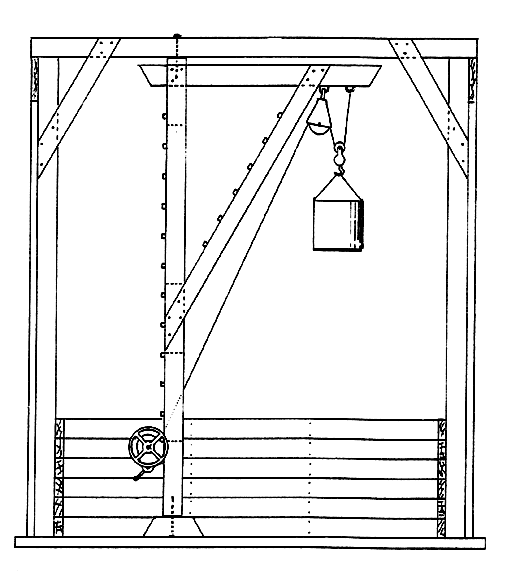

Coaling Derrick Drawing

One Sheet

$10.50 US Funds

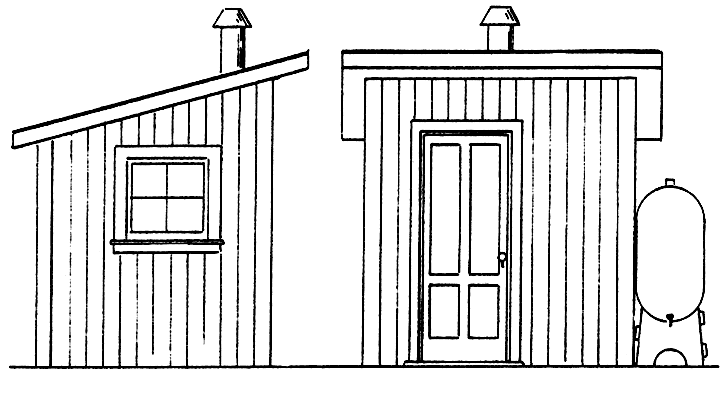

Oil shed drawing
Three Track Engine House at Rico, Colo.

33" x 67" (can be shortened)

The Rio Grand Southern, three track engine house at Rico, Colorado had doors at both ends to  hold up to six locomotives.  This model, based on original engineering drawings, makes a very impressive structure on your layout.

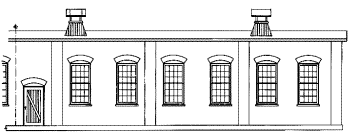

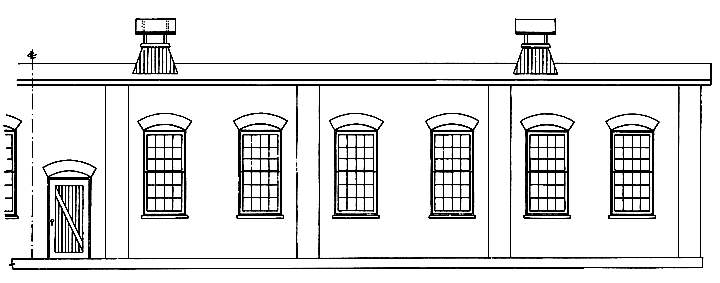

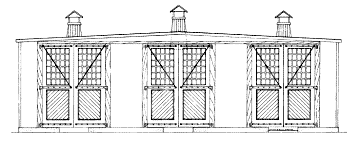

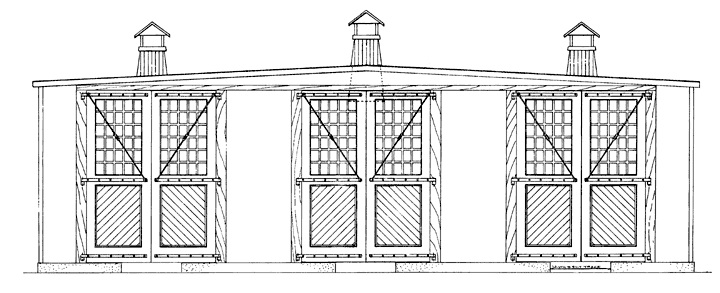

Rico 3 stall engine house drawing







Two Sheets

$17.50 US Funds

Rico 3-stall engine house drawing
Two Stall Engine House

22" x 32" (16" x 32" without workshop)

Will take a Bachmann Ten Wheeler and can be lengthened for larger engines.

TWO STALL ENGINE HOUSE PHOTOS

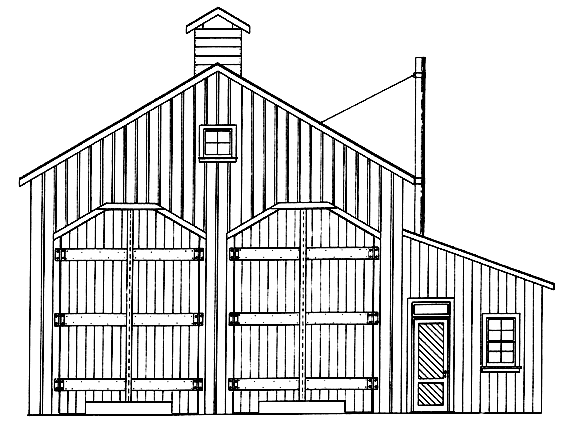

Engine House (Two Stall) Drawing





Two Sheets

$17.50 US Funds



One Stall Engine Shed

14.75" x 32" with shop

Long enough for Ten Wheeler, but can be shortened to suit your logging engines.

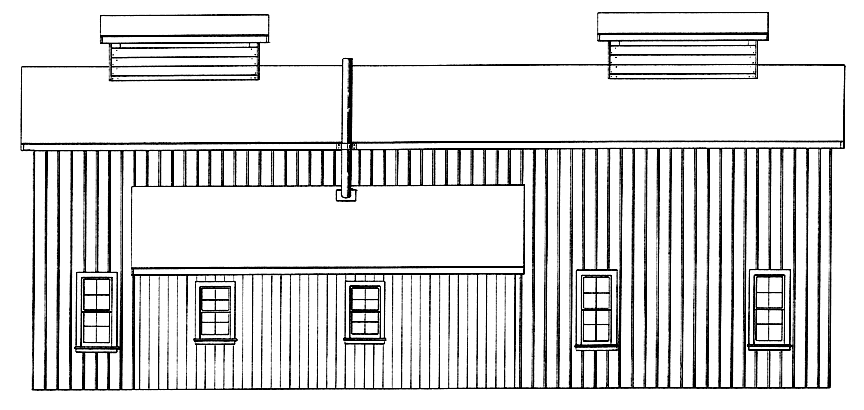

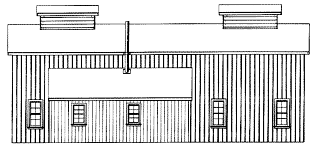

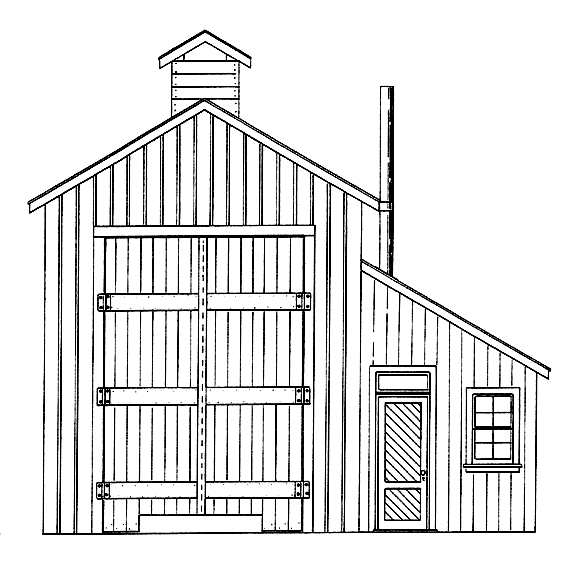

 Engine Shed (one stall) Drawing Engine Shed (one stall) Drawing

 Two Sheets

$17.50 US Funds

Businesses:
Atlantic Cable Silver Mine at Rico, Colorado.

5.5" x 18" for minimum mine; trestle & shed increase size.

Based on the mine circa 1900. Plans also include drawings of trestle, mine car, cage, & machinery shed.

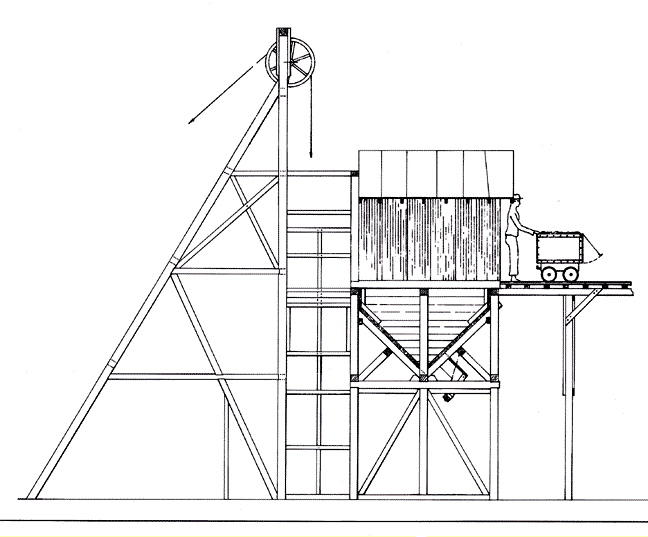

ATLANTIC CABLE MINE PHOTOS
Atlantic Cable Mine circa 1990





Two Sheets

$17.50 US Funds

Prairie Grain Elevator

22" x 22" x 33" tall

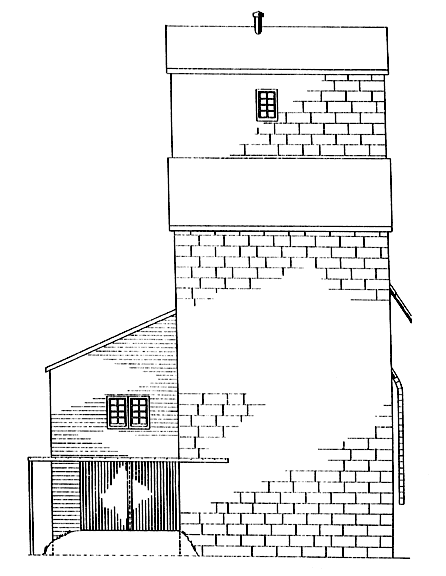

Modeled after an actual elevator complex in Dunleath, Saskatchewan.








Three Sheets

$19.95 US Funds



GRAIN ELEVATOR & BALLOON ANNEX PHOTOS

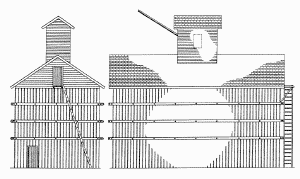

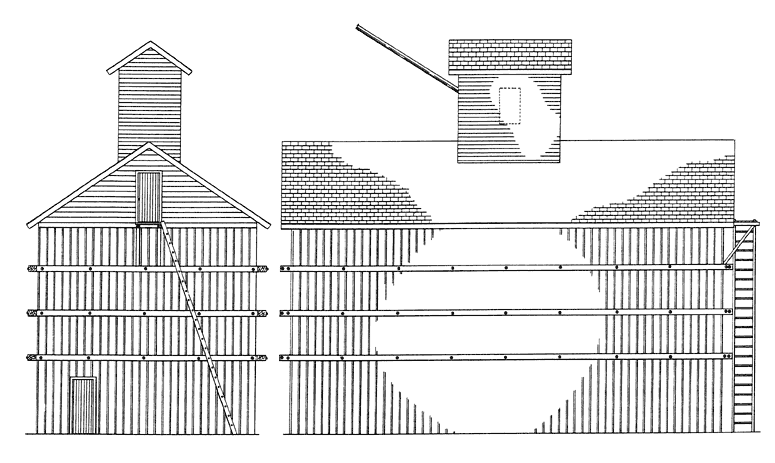

Balloon Annex (for above)

10.5" x 21"

This grain storage annex will complete your Grain Elevator complex.




 One Sheet

$10.50 US Funds



SET: Grain Elevator &  Annex Includes prairie grain elevator and balloon annex for an impressive complex.

Four sheets

$26.95 US Funds

     OTHER BUSINESS PHOTOS
Feed and Grain Business

21" x 28" over platforms

Typical of many small town businesses throughout North America.

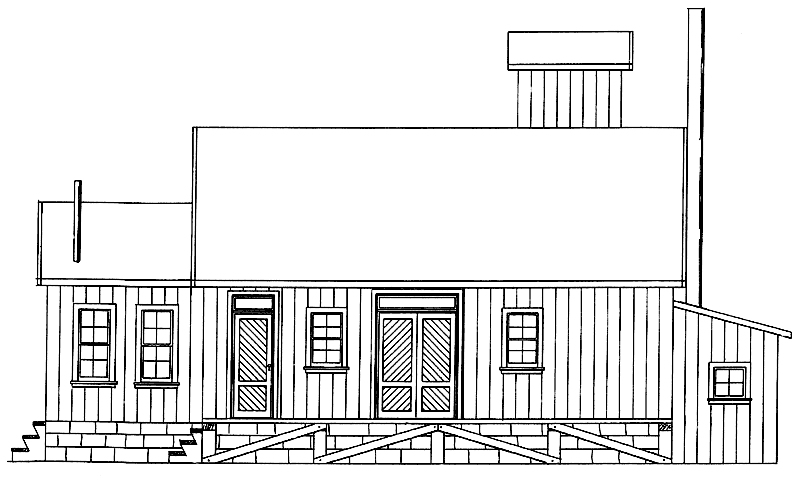

F & G Store Drawing

Photos & slideshow are on "Other Business Photos" Page



  Three Sheets

$19.95 US Funds

Two Story Village Stores

10.5" x 11.5" each

Four stores including a Masonic hall; suitable for any small town.

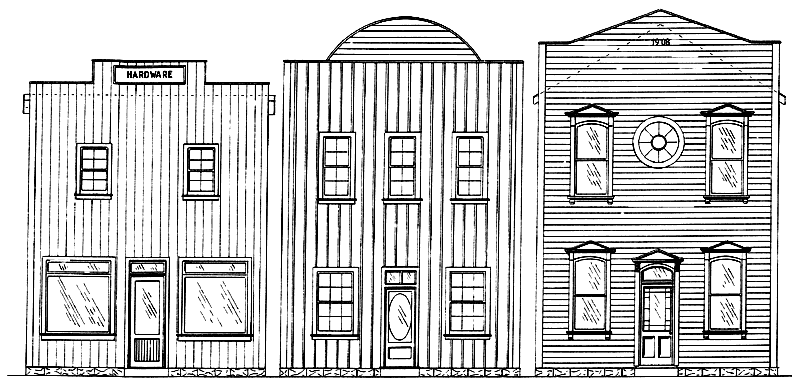

Two Story Stores Drawing

Photos & slideshow are on "Other Business Photos" Page



 Two Sheets

$17.50 US Funds



One Story Village Stores

9" x 9" each

Small barbershop, grocery and office of the early 1900's.

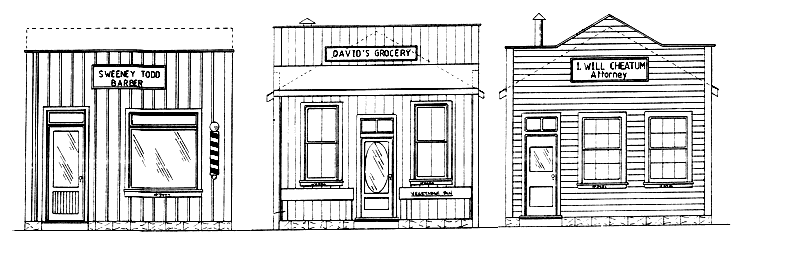

One Story Stores drawing
Photos are on "Other Business Photos" Page


One Sheet

$10.50 US Funds


Gunnison Barn

13" (plus 8" shed) x 29" long

This 1880 dairy barn was built of squared logs with board gable ends.  Later the logs were covered with board & batten planking to eliminate drafts and chinking.  Plans show both details so the modeler can do as preferred.

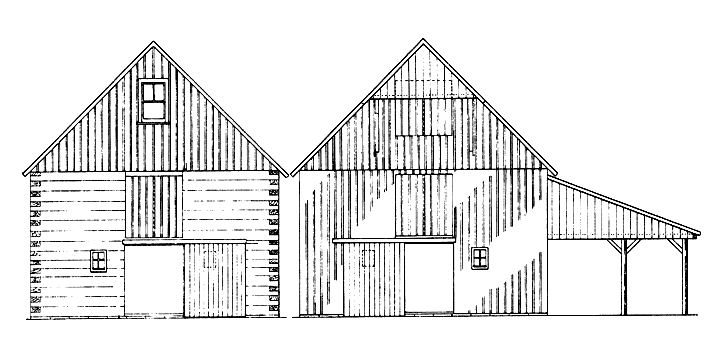

Gunnison barn drawing

Photos are on "Other Business Photos" Page



 Two Sheets

$17.50 US Funds



Barkerville Livery Stable*

10.5" x 11" (plus 7" x 11"  extension)

Also suited as a medium sized barn.

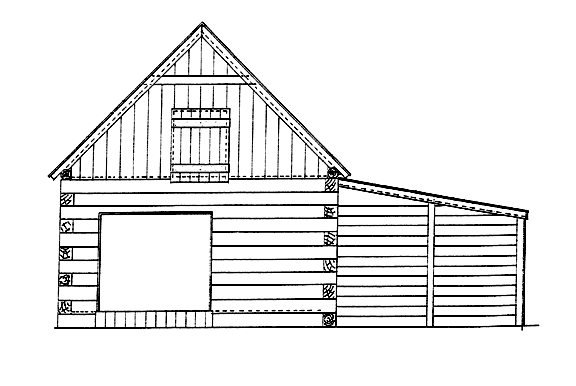

Livery stable drawing

Photos are on "Other Business Photos" Page



One Sheet

$10.50 US Funds

OTHER BUSINESS PHOTOS
Houses & Other Town Buildings:
CHURCH & SCHOOL PHOTOS

The Barkerville Church


9.5" x 16.5" (basic building) 14.5" x 22" (with apse & Sunday school)

Based on St. Saviour's Church in Barkerville, British Columbia.

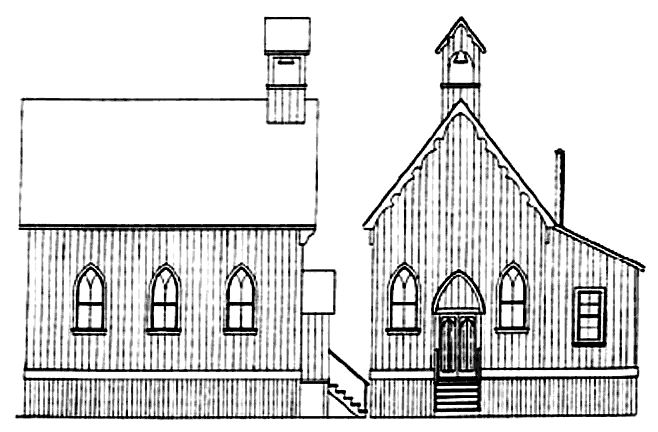

Barkerville Church





 Three Sheets

$19.95 US Funds



Church In The Vale

10.5" x 18"

A smaller, simpler church.

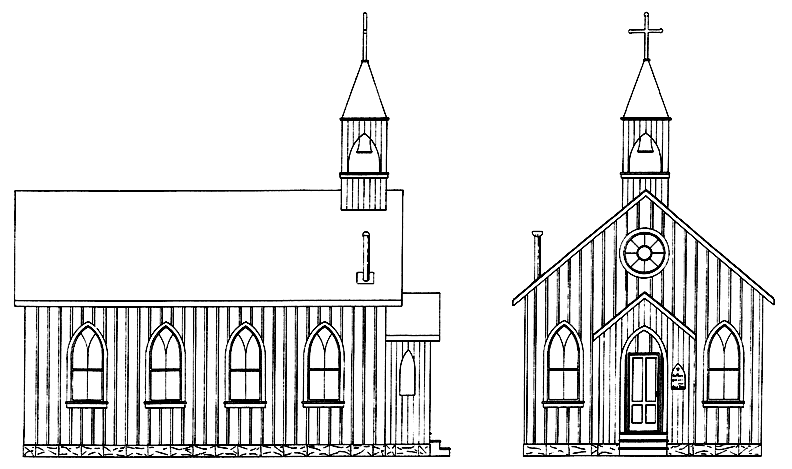

Little Church Drawing

One Sheet

$10.50 US Funds

Little Red Schoolhouse

 10.5" x 18"

The traditional one-room country school.

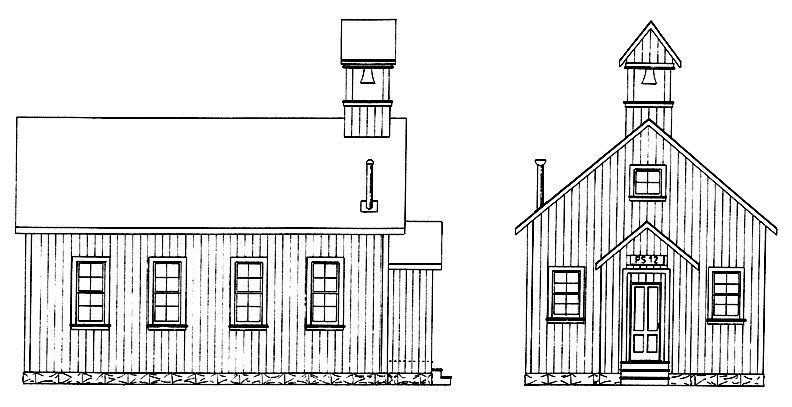

Schoolhouse Drawing

One Sheet

$10.50 US Funds



SET: Schoolhouse & Church





 Includes Little Red  Schoolhouse and Church In the Vale

Two Sheets

$17.50 US Funds
CHURCH & SCHOOL PHOTOS

HOUSE PHOTOS


Homestead House*

10.5" x 13" (includes porch)

Based on a pioneer farmhouse near Victoria, British Columbia & typical of early log homes across North America.

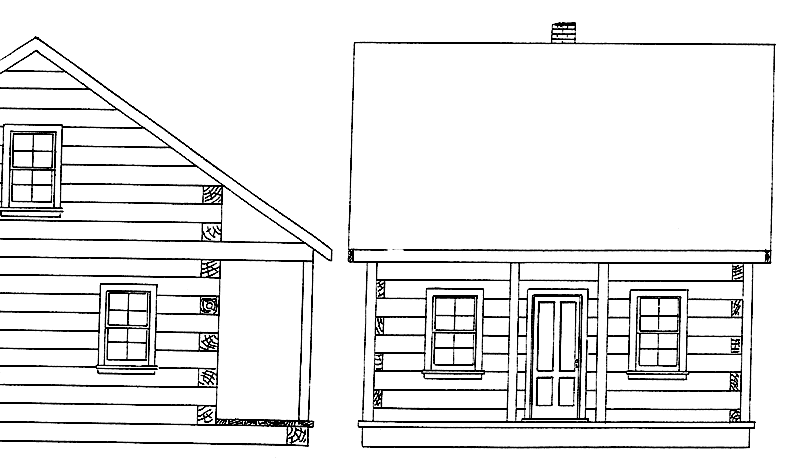

 Homestead House Drawing

 One Sheet

$10.50 US Funds



Old Thyme Farm House*

10.5" x 13" (includes porch)

A modification of the above log cabin with a different roof line and porch.

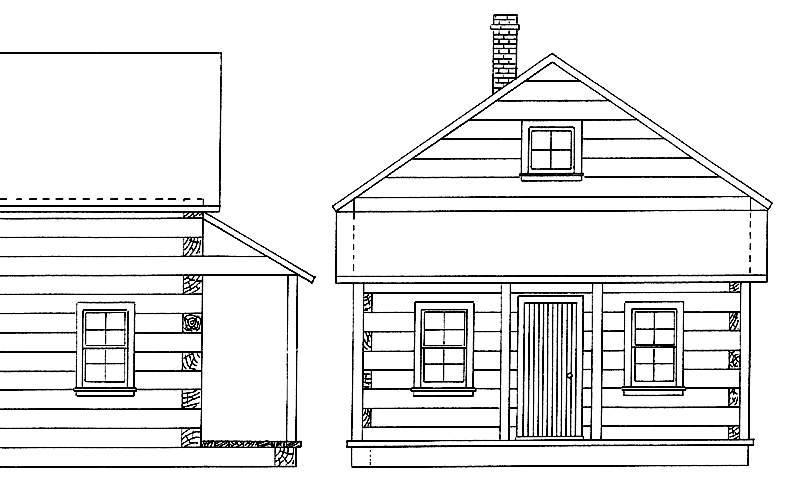

    Old Thyme House

 One Sheet

$10.50 US Funds

Cottonwood House*

 17" x 18" (includes wing)

The original, built in 1865 as  a stage stop and farm house, still stands near Barkerville, British Columbia.

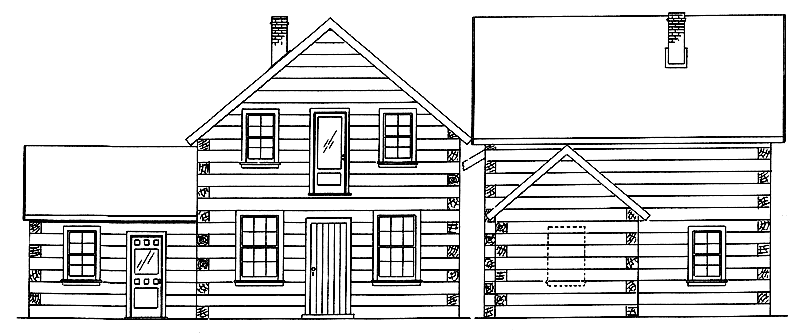

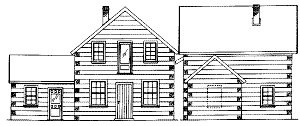

Cootonwood House Drawing
L. Smith, Australia slide show "Cottonwood House as a Railway Inn"

One Sheet

$10.50 US Funds



Small Shed*

9" x 11" (with loading dock)

Converts the Cottonwood House into a small town industry, or can stand alone as small freight shed or the loading dock of any small business.

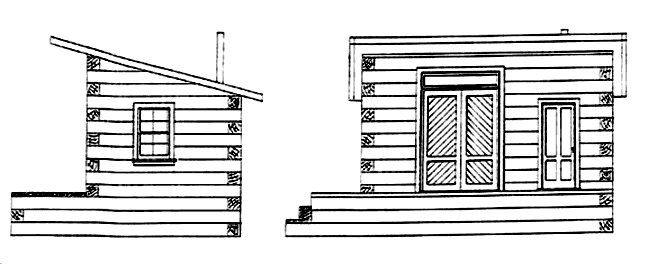

Small Log Shed Drawing





 One Sheet

$10.50 US Funds



SET: Three Houses and Small Shed*





Includes Homestead House, Old Thyme House, Cottonwood House & Small Shed

  Four
Sheets

$26.95 US Funds

HOUSE PHOTOS

    * Indicates pioneer type squared log building typical of many in the Northwest, the mountain states and the hill country of Pennsylvania, Ohio and Tennessee.
